Export Access Data to Excel

How to use VBA to export to Excel workbooks data from Access query datasheets and to format the worksheets once the data have arrived.

Last updated on 2018-08-31 by David Wallis.


Preface

For many of the databases I develop I include an export-to-Excel capability. This is for clients who want the means of dumping data so that they can do their own thing without risk to the primary data.

Quite often an export in itself is all that’s required, instead of a carefully created Access report included in the database. Also, on occasions, the export serves as a useful check that the assembled records contain exactly what the client needs, prior to creation of a full-blown Access report.

This article describes a VBA procedure for dumping data from Access into Excel, exploiting the DoCmd.TransferSpreadsheet method to take you beyond the explanation of the workings of this method that you read in many websites.


Initial Considerations

Contacting

Compounded from client requirements over the years, I've identified these are the main features of an export-to-Excel capability:

All DMW databases supplied to clients are split — FE (Front End) and BE (Back End). FEs contain queries, forms, reports, macros and modules, and, as appropriate, a table or two, as I'll explain below. BEs contain tables only.

From the viewpoint of a developer, these are my considerations:

Were users to be allowed to tinker, it would be an impractical and time-consuming task for me providing upgrades and on-gong support to the client. The client would not be happy with the bill.


VBA TransferSpreadsheet Method

The procedure dmwExport uses the bare bones of the TransferSpreadsheet method to export the contents of a table, or of a query datasheet, as a named Excel file to a named folder:

Sub dmwExport

'~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

DoCmd.TransferSpreadsheet _

TransferType:=acExport, _

SpreadsheetType:=acSpreadsheetTypeExcel12Xml, _

TableName:=query$ ,_

FileName:=path$, _

HasFieldNames:=True

End Sub

dmwExport("qsResults", "S:\Reports\Results.XLSX"), for example, exports the contents of the query qsResults to the folder S:\Reports\ as an Excel file named Results.XLSX.


Opening the Exported Workbook

dmwExport creates the workbook and saves it, but it doesn't display the completed workbook. Experience suggests that most users want to see the results of the export as soon as it's complete.

Sub dmwExport(query$, path$)

'~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Dim xlApp As Object, wkbk As Object

DoCmd.TransferSpreadsheet _

TransferType:=acExport, _

SpreadsheetType:=acSpreadsheetTypeExcel12Xml, _

TableName:=query$, _

FileName:=path$, _

HasFieldNames:=True

Set xlApp = CreateObject("Excel.Application")

With xlApp

.Visible = True

Set wkbk = .Workbooks.Open(path$)

End With

End Sub


Error Handling

At this point we will include error handling and make sure that the procedure releases any connection with Excel once it has presented the workbook:

Sub dmwExport(query$, path$)

'~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

On Error Goto errHandler

Dim xlApp As Object, wkbk As Object

Dim msg$

DoCmd.TransferSpreadsheet _

TransferType:=acExport, _

SpreadsheetType:=acSpreadsheetTypeExcel12Xml, _

TableName:=query$, _

FileName:=path$, _

HasFieldNames:=True

Set xlApp = CreateObject("Excel.Application")

With xlApp

.Visible = True

Set wkbk = .Workbooks.Open(path$)

End With

procDone:

Set wkbk = Nothing

Set xlApp = Nothing

Exit Sub

errHandler:

msg$ = Err.Description

MsgBox msg$, vbExclamation, "Unanticipated Error"

Resume procDone

End Sub


Path and Workbook Naming

You need to take care when supplying values to the path$ argument of dmwExport(query$, path$). Consider these values:

"S:\Reports\Results.XLSX" This works satisfactorily — the Workbook named Results.XLSX is directed to the S:\Reports\ folder.

"S:\Reports\Results" This works satisfactorily too — the procedure attaches the .XLSX extension to the workbook's name so that Results.XLSX is directed to the S:\Reports\ folder.

"S:\Reports\Results\" Here the problem arises that the final \ causes the procedure to treat S:\Reports\Results\ as a folder, without specifying any workbook at all, with resulting error conditions, eg —

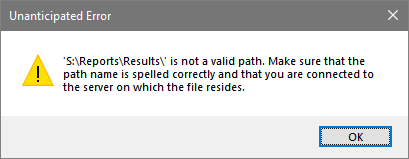

Excel Export Error

If there's call for it (let me know), I shall add some code to contend with the issue. The full-blown export program described below incudes such code.


Providing for Folder Changes

In my experience, clients like to be able to determine for themselves to which folder the export process directs the workbooks it creates. Also, they want to be able to change that folder without needing to get me to tweak any code. This is a particular requirement when a client's IT want the freedom to change locations for files on a network and re-map drives.

Over the years, I've tried a number of ways of providing for this, currently settling with a method that uses an addition to the two main FE and BE files. This third file I name KEY.ini, which is a simple text file, the content of which is this:

Important

'~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

This file to be placed in same folder as USER file

Edit ExportPath to correspond to your folder structure

'~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

DEFAULT]

ExportPath = "S:\Reports\"

Now we need to accommodate KEY.ini into the export process. The process must pick out the export path from KEY.ini.

In tune with good practice we are going to structure our programming by separating our code into a number of sub-routines. Each of these will perform a distinct operation, one of which will be the picking from KEY.ini.

From here on in dmwExport will become one of the sub-routines the running sequences of which will be determined by an overall controlling procedure.


The Controlling Procedure

This is the sequence of sub-routines that the controlling procedure, or program, named dmwExportToXL, will call:

dmwGetPath This VBA-function sub-routine will look for KEY.ini and get the export path from it. If dmwGetPath cannot locate KEY.ini, or is unable the find the information about the export path, then it will return an error message to dmwExportToXL.

dmwCheckPath This VBA-function sub-routine will seek to confirm the existence of the folder to which dumps are to be directed. If dmwCheckPath cannot locate that folder it will it report is as missing to dmwExportToXL.

dmwExport This will complete the export program passing data from Access and into Excel, the opening Excel to display the data, and the formatting of the worksheet.

This is the skeleton of the dmwExportToXL program:

Sub dmwExportToXL()

'~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Dim msg$, bln As Boolean

msg$ = dmwGetPathFromKEY()

bln = dmwCheckPath()

Call dmwExport()

End Function


Get Path from KEY File Sub-Routine

The job of the sub-routine dmwGetPathFromKEY is to retrieve the path of the back-end DATA file from KEY.ini:

Function dmwGetPathFromKEY(pathINI$, element$) As String

'~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

On Error GoTo errHandler

Dim i&, lenElement&

Dim fstChar34%, lstChar34%

Dim lineINI$, path$

If Len(Dir(pathINI$)) > 0 And Len(element$) > 0 Then

lenElement& = Len(element$)

i& = FreeFile()

Open pathINI$ For Input As #i&

Do While Not EOF(i&)

Line Input #i&, lineINI$

If Left(lineINI$, lenElement&) = element$ Then

path$ = Mid(lineINI$, lenElement& + 1)

Exit Do

End If

Loop

Close #i&

fstChar34% = InStr(path$, Chr(34)) + 1

lstChar34% = InStrRev(path$, Chr(34))

path$ = Mid(path$, fstChar34%, lstChar34% - fstChar34%)

Else

path$ = "Error"

End If

procDone:

dmwGetPathFromKEY = path$

Exit Function

errHandler:

path$ = "Error"

Resume procDone

End Function

If it's unable to return the whereabouts of DATA, then dmwGetPathFromKEY warnings from which dmwStartUp composes messages to the user.


Check Path Sub-Routine

The job of the second sub-routine, dmwCheckPath, in the export program is to confirm that the folder specified in KEY.ini actually exists:

Function dmwCheckPath(path$) As String

'~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

On Error GoTo errHandler

Dim msg$

If Dir(path$, vbDirectory) = "." Then

msg$ = vbNullString

Else

msg$ = _

"No folder matches entry in KEY file"

End If

procDone:

dmwCheckPath = msg$

Exit Function

errHandler:

msg$ = Err.Description

Resume procDone

End Function

dmwCheckPath returns a null string if the folder is in place, or a message if that folder is missing or that the program cannot find it at the anticipated location.


Export to Excel Sub-Routine

The third and final subroutine in the program is dmwExport. But unlike the version at the top of this page, this version of dmwExport contains lines of code aimed at smartening up the contents of the worksheet created by the export.

The smartening up that my clients most like to see are these:

Hence a revised dmwExport, now fashioned as a function procedure:

Function dmwExport( _

query$, path$, _

fileName$, wksName$, _

colsCurrency$, colsDate$ _

) As String

'~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

On Error GoTo errHandler

Dim xlApp As Object, wkbk As Object, wks As Object

Dim file$

Dim formatCur$, formatDate$, intColor&

Dim arrayCols() As String, col$, n%, i%, w!

Dim cell As Range

Dim msg$

' Worksheet formats

formatCur$ = "£#,##0.00"

formatDate$ = "yyyy-mm-dd"

intColor& = RGB(100, 200, 200)

' Create workbook

file$ = path$ & fileName$

DoCmd.TransferSpreadsheet _

TransferType:=acExport, _

SpreadsheetType:=acSpreadsheetTypeExcel12Xml, _

TableName:=query$, _

FileName:=file$, _

HasFieldNames:=True

' Open workbook

Set xlApp = CreateObject("Excel.Application")

With xlApp

.Visible = True

Set wkbk = .Workbooks.Open(file$)

End With

' Format worksheet

Set wks = wkbk.worksheets(1)

With wks

.Name = wksName$

' Currency columns

arrayCols = Split(colsCurrency$, ",")

For i = LBound(arrayCols) To UBound(arrayCols)

With .Columns(arrayCols(i))

.NumberFormat = formatCur$

End With

Next i

' Date columns

arrayCols = Split(colsDate$, ",")

For i = LBound(arrayCols) To UBound(arrayCols)

With .Columns(arrayCols(i))

.NumberFormat = formatDate$

End With

Next i

' Filters

With .Range("A1")

.Select

.autofilter

End With

' Column width adjustments

With .Cells

.Select

.EntireColumn.AutoFit

End With

n% = .Cells(1, 1).End(xlToRight).Column

For i% = 1 To n%

With .Cells(1, i%)

w! = .EntireColumn.ColumnWidth

.EntireColumn.ColumnWidth = w! + 4

.HorizontalAlignment = xlCenter

.Interior.Color = intColor&

.Font.Bold = True

End With

Next i%

End With

With xlApp.ActiveWindow

.SplitColumn = 0

.SplitRow = 1

.FreezePanes = True

End With

msg$ = vbNullString

procDone:

Set wks = Nothing

Set wkbk = Nothing

Set xlApp = Nothing

dmwExport = msg$

Exit Function

errHandler:

msg$ = _

Err.Number & ": " & Err.Description

Resume procDone

End Function


Give DMW’s Tips Your Support

ContributionIf you intend making use of Tips in any of your professional or commercial work and would like to make a donation in recognition of the time I spend publishing them, then please click Contribution and tell me how much you wish to donate. In response I’ll email you an invoice for payment by PayPal or card.

Thanks, in anticipation.


Export to Excel Program Procedure

This is the controlling procedure that pulls together the sub-procedures to perform the export to Excel:

Function dmwExportToXL(query$, _

fileName$, wksName$, _

colsCurrency$, colsDate$)

'~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

On Error GoTo errHandler

Dim bln As Boolean

Dim path$

Dim msg$

path$ = Left(CurrentProject.FullName, _

InStrRev(CurrentProject.FullName, "\"))

path$ = path$ & "KEY.ini"

path$ = dmwGetPathFromKEY(path$, "ExportPath")

Select Case path$

Case "Error"

msg$ = "Unanticipated error locating KEY"

bln = False

Case Else

bln = True

End Select

If bln Then msg$ = dmwCheckPath(path$)

If msg$ = vbNullString Then

msg$ = dmwExport( _

query$, path$, _

fileName$, wksName$, _

colsCurrency$, colsDate$)

Else

msg$ = _

"Folder for exports cannot be located. " & msg$

End If

procDone:

If msg$ <> vbNullString Then

MsgBox msg$, vbExclamation, "Excel Export"

End If

Exit Function

errHandler:

msg$ = Err.Number & ": " & Err.Description

Resume procDone

End Function


This is how you might provide values for the arguments of dmwExportToXL:

query$ as “qsExportSales” — your database query

fileName$ as “Hello” — the workbook file's name.

wksName$ as “World” — the worksheet’s name

colsCurrency$ as “F:F” — Column F currency format

colsDate$ as “C:C,D:D” — Columns C and D date format.

Each argument value must be enclosed in the quotation marks as shown above.
